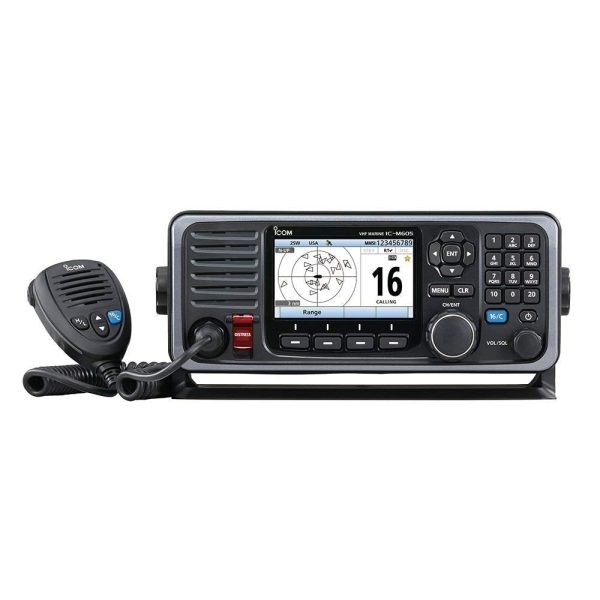

Model: M605 21

• 4.3 wide color TFT LCD
• Night mode ensures readability in dark places
• Intuitive user interface
• NMEA2000™ and NMEA0183 connectivity
• Class D DSC
• Active noise cancelling
• Last call voice recording
• 30W listen back hailer
• Built-in horn foghorn
• IPX8 submersible (1 m depth of water for 60 minutes)
• Dual and Tri-watch functions
• Weather channels with alert function
• DSC Multi-task function
• AquaQuake™ draining function
• Instant-access button for Channel 16 and call channel
• Supplied speaker microphone, HM-205RB can be connected to the rear panel

• All functions of the IC-M605 (including DSC and distress operation) can be remotely controlled with up to three controllers, RC-M600 COMMAND HEAD and or HM-195 series COMMANDMIC™, with an intercom function available among the main radio and controllers. The system allows for maximum operating flexibility anywhere on your boat.

  A combination of the directional keypad and soft keys provides simple operation. Most used functions are assigned to soft keys (at the bottom of the display) for quick one push function access. The large ten-key pad enables you to smoothly enter channel numbers, MMSI numbers with ID names and so on.

  The IC-M605’s internal speaker enhances intelligibility of received calls. The waterproof, paper speaker-cone provides superior sound quality with a wide frequency range and a flat frequency response for powerful, yet clear audio.

  A weak signal adjacent to a strong signal can be clearly received by the IC-M605. Its commercial grade receiver performance (selectivity and IMD: more than 80 dB) provides reliable communication at all times.

  The GNSS (GPS, GLONASS and SBAS) receiver is integrated in the IC-M605. Position information can be simply received with connection to the supplied GNSS antenna with 5 m cable, UX-241.

  The Active Noise Canceling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.

  When connected to the optional horn speaker, SP-37, you can talk with crews on the deck or shore from the radio’s microphone and can hear any reply via the horn speaker. Also available the RX hailer function and four patterns of automatic foghorn.

  The last call voice recording function automatically saves up to two minutes of an incoming call. Don’t miss any incoming messages.

  Using NMEA 2000™ connectivity, the radio can exchange GNSS, AIS reports, DSC call information data, radio frequency and PGN list data on the network. NMEA 0183 -HS GNSS position data can also be converted to NMEA 2000™ data for other equipment

  With an optional voice scrambler unit, UT-112, the IC-M605 provides 32 tone secure conversation. This function is useful when you want to share private information with consort ships.

  With an integrated AIS receiver, the IC-M605 can show real-time AIS vessel traffic information on the display. The AIS combo screen enables you to monitor the AIS plotter during basic operation. You can directly call a selected AIS target from the AIS screen using an individual DSC call.

  Specifications

  General
  Usable channels		USA, CAN, INT, WX channels
  Operating temperature range		—20°C to +60°C; —4°F to +140°F
  Antenna impedance		50 ? (SO-239)
  Transmitter
  Output power (at 13.8 V DC)		25 W, 1 W
  Max. frequency deviation		+ – 5 kHz
  Frequency tolerance		+ – 5 ppm
  Spurious emissions		Less than —70 dBc (at 25 W)
  Residual modulation		More than 40 dB
  Adjacent channel power		More than 70 dB
  Receiver
  Intermediate frequency CH70		30.15 MHz, 450 kHz (1st 2nd) 21.70 MHz, 450 kHz (1st 2nd)
  Sensitivity (at 12 dB SINAD) CH70 (1% BER)		0.22 µV typical 0.71 µV emf typical
  Adjacent channel selectivity CH70 (1% BER)		More than 80 dB More than 80 dBµ emf
  Spurious response CH70 (1% BER)		More than 77 dB More than 73 dBµ emf
  Intermodulation CH70 (1% BER)		More than 80 dB More than 73 dBµ emf
  Hum and noise		More than 40 dB
  Audio output power (at 10% distortion)		More than 15 W with a 4 Ω external speaker
  Input Voltage		13.8 V DC (11.7—15.9 V DC)
  Input Draw		Tx 25 W output 6A Rx Max. audio 8A

  What s in the Box:
  • M605-21
  • Hand microphone (HM-205RB)
  • GNSS antenna (UX-241)
  • PC power cable
  • Mounting bracket kit
  • OPC2384 Adapter Cable

  • Additional information
