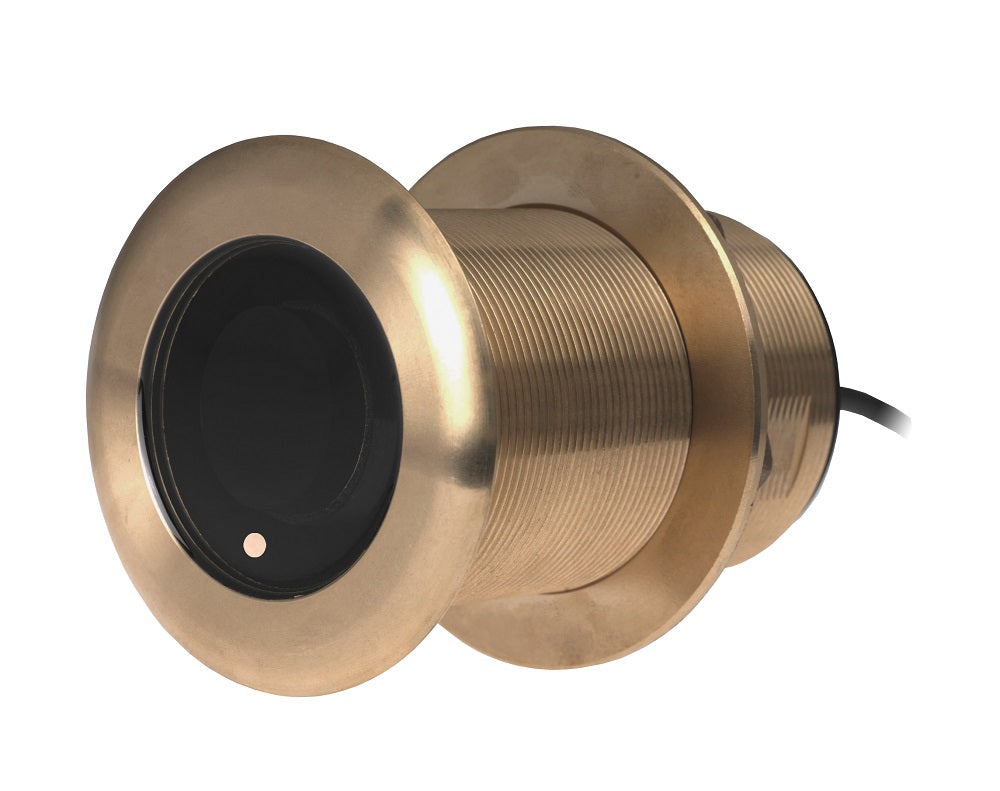

Model: B75C-12-L-HB

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• 300 W of power with a maximum depth of 353 m (1200 )
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull

• Airmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

  When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

  Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

  Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

  Great for operating at high boat speeds

  Specifications

  Cable-Length		9 m (30 )
  Deadrise Range		8 to 16°
  Frequency Band		Low
  Low Frequency		40-75 kHz
  Low Frequency Beamwidth		32°-21°
  Max Depth		366 m (1200 )
  Power Rating		300 W
  Retractable housing		No
  Single or Dual Frequency		CHIRP-Ready Single-Band
  Transducer Functions		Depth, Temperature

  What s in the Box:
  • B75C-12-L-MM
  • MMC-HB Cable
